Having covered much of the theory of using the Accounts framework and SLRequest class to integrate social networks into iOS 6 iPad applications in the previous chapter, this chapter will put this theory into practice by creating an application to request and display the entries in the timeline of a Twitter account.
Creating the TwitterApp Project
Begin by launching Xcode and selecting the options to create a new iPad iOS application based on the Single View Application template. Enter TwitterApp as the product name and class prefix, set the device to iPad and select the Use Storyboards and Use Automatic Reference Counting options if they are not already selected.
Designing the User Interface

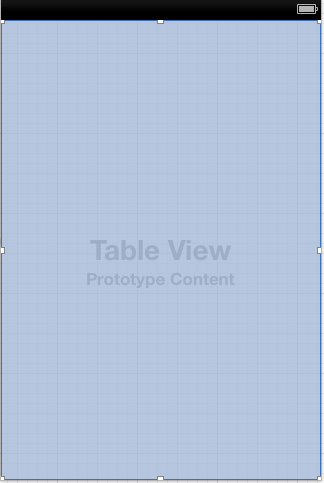

Navigate to the MainStoryboard.storyboard file in the project navigator panel and select it to load it into to the editing panel. From the Object Library panel, drag and drop a Table View component onto the view canvas and position it so that fills the entire view space as shown in Figure 76-1.
Select the Table View object and display the Assistant Editor using View -> Assistant Editor -> Show Assistant Editor menu option. Ctrl-click on the Table View object in the view and drag the resulting line to the area immediately beneath the @interface directive in the Assistant Editor panel. Upon releasing the line, the connection panel will appear. Configure the connection as an Outlet named tweetTableView and click on the Connect button.
Figure 76-1
With the Table View still selected, display the Connections Inspector (View -> Utilities -> Show Connections Inspector). Click on the circle to the right of the dataSource outlet and drag the line to the Twitter App View Controller entry in the Twitter App View Controller Scene in the document outline panel as illustrated in Figure 76-2:
Figure 76-2
Repeat the steps to establish the same connection for the delegate outlet.
Modifying the Interface File
Before writing code to talk to the Twitter API, some additional files need to be imported to avoid undefined symbols when we start working with the Accounts and SLRequest classes. In addition, an array is going to be needed to act as the data source for the application which will ultimately contain the tweets that are returned by the Twitter API. The compiler also needs to be notified that this class is acting as both the data source and delegate for the Table View.
Select the TwitterAppViewController.h file and modify it as follows:
#import <UIKit/UIKit.h> #import <Accounts/Accounts.h> #import <Social/Social.h> @interface TwitterAppViewController : UIViewController <UITableViewDataSource, UITableViewDelegate> @property (strong, nonatomic) IBOutlet UITableView *tweetTableView; @property (strong, nonatomic) NSArray *dataSource; @end
Accessing the Twitter API
The code to access the Twitter account and extract the posts from the account timeline will reside in a method named getTimeLine: located in the TwitterAppViewController.m file. Select this file and modify it to add the code for this new method:
- (void)getTimeLine {
ACAccountStore *account = [[ACAccountStore alloc] init];
ACAccountType *accountType = [account
accountTypeWithAccountTypeIdentifier:ACAccountTypeIdentifierTwitter];
[account requestAccessToAccountsWithType:accountType
options:nil completion:^(BOOL granted, NSError *error)
{
if (granted == YES)
{
NSArray *arrayOfAccounts = [account
accountsWithAccountType:accountType];
if ([arrayOfAccounts count] > 0)
{
ACAccount *twitterAccount =
[arrayOfAccounts lastObject];
NSURL *requestURL = [NSURL URLWithString:@"http://api.twitter.com/1/statuses/home_timeline.json"];
NSMutableDictionary *parameters =
[[NSMutableDictionary alloc] init];
[parameters setObject:@"20" forKey:@"count"];
[parameters setObject:@"1" forKey:@"include_entities"];
SLRequest *postRequest = [SLRequest
requestForServiceType:SLServiceTypeTwitter
requestMethod:SLRequestMethodGET
URL:requestURL parameters:parameters];
postRequest.account = twitterAccount;
[postRequest performRequestWithHandler:
^(NSData *responseData, NSHTTPURLResponse
*urlResponse, NSError *error)
{
self.dataSource = [NSJSONSerialization
JSONObjectWithData:responseData
options:NSJSONReadingMutableLeaves
error:&error];
if (self.dataSource.count != 0) {
dispatch_async(dispatch_get_main_queue(), ^{
[self.tweetTableView reloadData];
});
}
}];
}
} else {
// Handle failure to get account access
}
}];
}
Much of the code in this method will be familiar from the previous chapter. There are, however, some notable exceptions. Firstly, the URL used in the request is intended to return the entries in the time line of the user’s Twitter account:
NSURL *requestURL = [NSURL URLWithString:@"http://api.twitter.com/1/statuses/home_timeline.json"];
The URL specified requires additional parameters specifying how much data is to be returned. In this case the request is limited to the 25 most recent posts and configured to include the tweet entities:
NSMutableDictionary *parameters =
[[NSMutableDictionary alloc] init];
[parameters setObject:@"25" forKey:@"count"];
[parameters setObject:@"1" forKey:@"include_entities"];
The SLRequest object is primed to use the SLRequestMethodGET HTTP method. This is appropriate since this time we are getting, as opposed to posting, data:
SLRequest *postRequest = [SLRequest
requestForServiceType:SLServiceTypeTwitter
requestMethod:SLRequestMethodGET
URL:requestURL parameters:parameters];
Finally, the handler code for the postRequest: method call now accesses the returned NSData object. The NSJSONSerialization class is then used to parse and serialize the data returned and assign it to the dataSource NSArray object. The Table View object is then told to reload the data it is displaying, causing it to re-read the data in the dataSource array and display it to the user. An important point to note here is that iOS performs the Twitter API request in a different thread from the main thread of the application. Threads are the cornerstone of any multitasking operating system and can be thought of as mini-processes running within a main process, the purpose of which is to enable at least the appearance of parallel execution paths within applications.
Since user interface updates take place in the main thread of the application, code has been added to ensure that the Table View reload call is made in the main thread as opposed to the thread used for the post request:
[postRequest performRequestWithHandler:
^(NSData *responseData, NSHTTPURLResponse
*urlResponse, NSError *error)
{
self.dataSource = [NSJSONSerialization
JSONObjectWithData:responseData
options:NSJSONReadingMutableLeaves
error:&error];
if (self.dataSource.count != 0) {
dispatch_async(dispatch_get_main_queue(), ^{
[self.tweetTableView reloadData];
});
}
}];
All that remains is to implement the delegate methods for the Table View so that the tweets are displayed to the user.
Calling the getTimeLine Method
Having implemented the getTimeLine method we need to make sure it gets called when the application is launched. This involves the addition of a single line of code to the viewDidLoad: method located in the TwitterAppViewController.m file:
- (void)viewDidLoad
{
[super viewDidLoad];
[self getTimeLine];
}
The Table View Delegate Methods
At a minimum, the delegate for a Table View must implement the numberOfRowsInSection: and cellForRowAtIndexPath: delegate methods. In terms of this example application, the former simply needs to return the number of items in the dataSource array. Remaining within the TwitterAppViewController.m file, therefore, implement this method as follows:
#pragma mark -
#pragma mark UITableViewDataSource
- (NSInteger)tableView:(UITableView *)tableView numberOfRowsInSection:(NSInteger)section {
return _dataSource.count;
}
The cellForRowAtIndexPath: method, on the other hand, needs to extract the text of the tweet corresponding to the current table row from the dataSource array and assign it to the table cell. Since each tweet is stored in the array in the form of an NSDictionary object, the tweet object first needs to be extracted and then the entry matching the “text” key in the dictionary used to access the text:
- (UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath {
static NSString *CellIdentifier = @"Cell";
UITableViewCell *cell = [self.tweetTableView
dequeueReusableCellWithIdentifier:CellIdentifier];
if (cell == nil) {
cell = [[UITableViewCell alloc]
initWithStyle:UITableViewCellStyleDefault
reuseIdentifier:CellIdentifier];
}
NSDictionary *tweet = _dataSource[[indexPath row]];
cell.textLabel.text = tweet[@"text"];
return cell;
}
Adding the Account and Social Frameworks to the Build Phases
Within the project navigator panel, select the TwitterApp target at the top of the list and in the main panel select the Build Phases tab. In the Link Binary with Libraries category, click on the + button and in the resulting list of libraries, search for and add the Social.framework library. Repeat this step to also add the Accounts.framework library.
Building and Running the Application

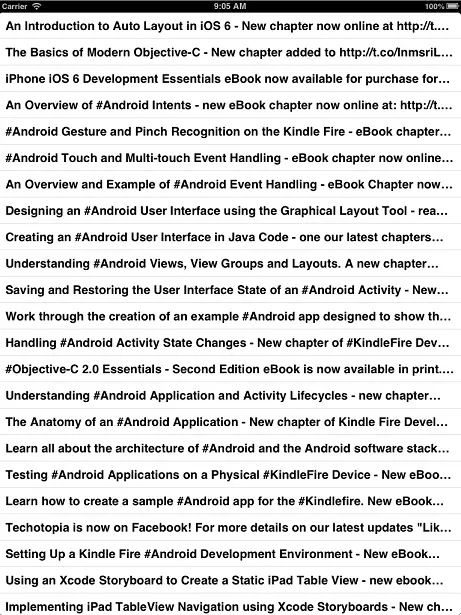

Click on the Run button located in the Xcode toolbar and wait for the application to launch either on a physical iPad device or the iOS Simulator. Assuming a Twitter account has been configured, the application will display the 20 most recent tweets posted to that account.
Figure 76-3
Summary
In addition to posting entries, the SLRequest class can used to retrieve information from supported social networks. In this chapter, a list of tweets posted to a Twitter account have been requested using the SLRequest class and displayed to the user within a Table View. The example also introduced the use of the NSJSONSerialization class to serialize the data returned from a Twitter API request.
